Lightning Protection Equipment for Industrial Stacks
Air Terminals, Copper Conductors, Cable Splicers and Fasteners

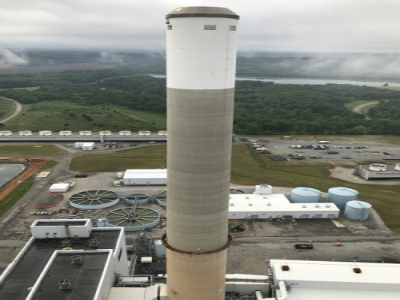

The products on this page are designed for use on industrial smoke stacks
and chimneys. Please call us at 406-745-3800 if you have any questions
or fill out this Quote Form.
and chimneys. Please call us at 406-745-3800 if you have any questions
or fill out this Quote Form.
Copper Conductors
Lead Covered Copper Conductors
With a continuous 1/16" pure lead sheath.
Note: All conductors listed on this page are manufactured to Underwriters' Laboratories requirements.
Note: Specialty copper cables are available on request to meet specific job requirements for your factory. Please call for pricing and availability.
Bare Copper Air TerminalsSolid Copper Air Terminals made from high conductivity copper rod with tapered air terminal and standard N. C. threads.Lead Covered Copper Air TerminalsSolid Copper Air Terminals made from high conductivity copper rod with a 1/16" thick lead sheath, tapered air terminal and standard N. C. threads. |
5/8" Air Terminals - Lightning Rods |
Stainless Steel Air TerminalsStainless Steel air terminals made from 316 grade stainless rod, with tapered point and standard N.C. Threads.Note: All air terminals listed on this page are manufactured to Underwriters' Laboratories® requirements. |
3/4" Air Terminals - Lightning Rods |
Air Terminal or Lightning Rod Bases
|
Note: Current standard requirements specify that side mounted points be anchored at two locations to the structure with the above provided stud counting as one. Refer to part numbers LP-C480, LP-LC480, LP-C492 or LP-LC492 for point holders to be used as the second required anchor.
|
Cable Splicers
-Sutiable for cables from 2/0 to 4/0 in size. |
|
Bonding Fittings
Handrail to Air Terminal
Suitable for 5/8" or greater air terminal or lightning rod diameter.
Special Bonding Assemblies
series 464
Assembly Components - Series 465
Cast Bronze Universal Cable - Series 466
Cast Bronze universal cable to rebar bonding clamp. Fits cable sizes through 250 MCM to reinforcing bars
up through #9 (1.128").
|
|
Rebar Bonds
Embedded rebar connection assembly
consists of 4" x 4" flush mount brass
plate with 1/2" tapped hole connecting
Part No. LPC401 and LPC404 bare
copper cable to rebar bonding clamp(s).
Three feet of cable provided per rebar
clamp. |
|
Series 467 For use with Part No. LPC401 and LPC404 bare copper cable LPC467X1 For Bonding 1 Rebar LPC467X2 For Bonding 2 Rebars Note Standard cable size = 2/0 For 4/0 cable size inseret "40" following 467 in the part number eg. LPC46740X2 for 4/0 cable, 2X clamp and 6 ft cable. |
Series 468- Bare BrassCast cable connector for connecting flush rebar plate to bare copper downlead cable. |
|
LPC468 Bare brass; connect Part No. LPC467 flush rebar to Part No. LPC401 and LPC404 bare copper downlead cable LPLC468 Lead covered brass; connect Part No. LPC467 flush rebar to Part No. LPLC401 and LPC404 lead covered copper downlead cable |
Steel Yoke Series 469
|
LP-S469 Stainless steel yoke for connections to Iron Bands. For use where lead covered copper cables extend over bands. Drilled and tapped for 1/2" threaded stud. Use with Series LPLC481 or LPLC482. or LPC483. |
| NOTE: The above iron band yokes are designed to fit over a single 3/8" thick band. | |
Grounding Busbar
LPC475 Used as a ground bus to connect
bottom end of downlead to customer
provided ground tail at column base.
Standard holes provided for 1/2" bolt size
connections and anchors (two on the face
and one on each wing). Room available
to mount installer's nameplate and
Underwriters' Laboratories Master Label
Wing mounting holes 14" on center.
|
|
LPC475 Solid copper ground bar 1/4" x 4" x 16" with a 2-1/8" offset. |
Downlead Protector
Copper tube protector for use where
stranded cables are subject to displacement
or damage. Protectors are 8 ft.
standard with set screw and wedge
each end to bond cable to tube.
|
|
LPC477 for use with Part No. LPC401 copper cable. LPC47740 for use with Part No. LPC47740 copper cable |
Pipe Fasteners
Bare bronze, protector pipe fastener.
Provided with 1/2" threaded stud for
anchoring.
|
|
LPC478 for use with Part No. LPC477 tube protector LPC47840 for use with Part No. LPC477-4/0 tube protector |
Bronze Protector Pipe - series 479Bare bronze, lay-in, protector pipe fastener. Mount in brick construction. |
|
LPC479 for use with Part No. LPC477 tube protector |
Air Terminal and Cable Fasteners
Bare bronze 2-bolt cap type point fastener
for use with bare copper points. Provided
with 1/2" threaded stud for anchoring.
Lead covered bronze 2-bolt cap type point
fastener for use with lead covered copper,
stainless steel or monel points. Provided
with 1/2" threaded stud for anchoring. |
|
Bare Bronze LPC48058* for 5/8" diameter bare copper point LPC48034* for 3/4" diameter bare copper point Lead Covered Bronze LPLC48058* for 5/8" diameter air terminals or LPLC401 and LPLC404 lead covered cable LPLC48034* for 3/4" diameter air terminals |
Cable Fasteners
Pinch type cable fastener. Provided with
1/2" threaded stud for anchoring. |
|
Bare Bronze LPC481 Bare bronze; use with copper cable |
Cap Type Cable Fastener - Series 4822-bolt cap type cable fastener. Provided with 1/2" threaded stud for anchoring.* For stud length 7/8" specify "SH" * For Stud length 1-1/2" specify "LG". |
|
Bare Bronze LPC482* Bare bronze; use with Part No. LPC401 bare copper cable |
Bare Bronze Cable Fastener - Series 483Bare bronze cable to metal surface fastener. Provided with 1/2" x 2" silicon bronze mounting bolt. May be used with Part No. LPS469 iron band yoke. |
|
Bare Bronze LPC483 Bare bronze cable to metal surface fastener |
Concrete Insert
Insert for placement in concrete
during construction. Use with
standard length stud 7/8"
|
|
LPLC48412 Cast bronze; provided with 1/2"-13 internal thread |
Brass Insert Plug
Provided with 1/4-20 centered thread and screw
driver slot. Allows for mounting Series 484
inserts to forms and offers means of removal.
|
|
LPC48512 for 1/2"-13 inserts |
Air Terminal and Cable Inserts
Lay-in point holder. Series C492 for use with
bare copper points. Series LC492 for use with
lead covered or stainless steel air terminals.
Lay-in brick construction. |
Bare Bronze LPC49258 Bare bronze; for 5/8" diameter points LPC49234 Bare bronze; for 3/4" diameter points |
Lead Covered Bronze LPLC49258 Lead covered bronze; for 5/8" outside diameter points or LPLC401 and LPLC404 lead covered cable LPLC49234 Lead covered bronze; for 3/4" outside diameter points |
Cable Holder Series 494
Lay-in pinch type cable holder. Lay-in
brick construction.
|
Bare Bronze LPC494 Bare bronze, for use with Part No. LPC401 bare copper cable |
Horizontal Cable Series 495
Lay-in horizontal cable for brick
construction.
|
Bare Bronze LPC495 Bare bronze, for use with Part No. LPC401 bare copper cable |
Cable Holder Series 496
2-bolt cap type, lay-in cable holder.
Lay-in brick construction.
|
Bare Bronze LPC496 Bare bronze; for use with Part No. LPC401 bare copper cable |
