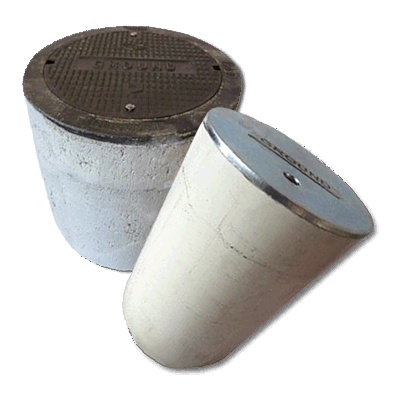

Grounding Access and Ground Inspection Wells

Ground access wells are used to gain easy access to underground grounding connections. They can be used with ground rods, ground plates and counterpoise grounding. They come with a steel cover for easy inspection of exothermic or mechanical grounding connection and testing of the continuity of the grounding system. The wells are available in different shapes and sizes. Contact us today and we’ll find the right one for your application.

To place an order please call 800-370-5886 or fill out this Quote Form.


Light Duty HDPE Plastic Enclosures model 6501
Model 6501
Light Duty HDPE Plastic Enclosures model 6503
Model 6503

Light Duty HDPE Plastic Enclosures

High Density Polyethylene (HDPE) inspection wells with “twist lock” cover and locking bolt. Provided with 2 knockouts. Provide strong, durable, chemical, and water resistant and are easy to install. Meets ANSI tier for pedestrian and for use in non-vehicular traffic areas. “Grounding” label is added to lid. Foot traffic only.

Part #Description
P65019" Round x 10" depth with "ground" label
P650312" Round x 18" depth with "ground" label

Other sizes and materials are available. Please call our sales department for your specific needs. Extensions and other depths are also available.



Polymer Concrete Ground Access Wells

Polymer Concrete Groud Access Wells

Light weight polymer concrete ground access wells meets ANSI Tier 15. Provided with box and bolt down cover. Each box has an open bottom and is stackable. For use in non-deliberate heavy vehicular traffic conditions. Cover is rated for 20K. "Ground" tag is added to lid.

Part #DescriptionDesign LoadANSI TierWeight (lbs.)
P653111"x18"x18"15K1556
P6534 12"x12"x12"15K1531
P6535 12"x12"x18"15K1535
P653612"x12"x24"15K1547
P653813"x24"x18"15K1575

ANSI Tier 22 products are available.
(design load for 20K)


PVC GROUND ACCESS WELL

PVC Ground Access Wells

PVC ground access well with 10" or 12" ID diameter. Galvanized steel lid included with "ground" tag on lid.

Part #DescriptionPart #Description
P64910" ID x 12" long P65412" ID x 12" long
P65010" ID x 18" long P65512" ID x 18" long
P65110" ID x 24" long P65612" ID x 24" long
P65210" ID x 36" long P65712" ID x 36" long

Schedule 80 PVC Groumd Access Well

PVC Ground Access Wells

PVC Ground access well-10” diameter with cast iron bolt down cover. For use in traffic areas. "Ground" cast into cast iron lid.

Part #Description
P654010” diameter x 12” long with cast iron cover
P654110” diameter x 18” long with cast iron cover
P654210” diameter x 24” long with cast iron cover
P654410” diameter x 36” long with cast iron cover
P654510” diameter x 48” long with cast iron cover

Schedule 80 PVC Slotted Access Well With Cast Iron Cover

Schedule 80 PVC Slotted Access Well with Cast Iron Cover

Schedule 80 PVC, 10" diameter with 4 slots to allow installation after grounding connections have been made. Comes complete with cast iron bold down lid. For use in traffic areas. "Ground" cast into cast iron lid.

Part #Description
P6544X4SL10” diameter x 36” long with cast iron cover
P6545X4SL10” diameter x 42” long with cast iron cover

NOTE: Other sizes available. Contact our sales department for options.



Concrete Roadway Traffic Ground Access Wells

concrete roadway traffic ground access wells

High density reinforced concrete access boxes. For use in areas with deliberate roadway traffic. A bolt down cast iron lid comes standard with access well and other lid options and sizes are available. "Ground" cast onto lid.

Part #Description
P656110-3/8” I.D. x 12” depth round concrete well
P656413” I.D. x 12” depth round concrete well



Galvanized Steel Lid

galvanized steel lid

For use with 8", 10" or 12" PVC ground well.
Lids are stamped "GROUND". Additional markings available.

Part #Description
P659X88" lid
P65910" lid
P66012" lid



Other sizes and materials are available. Please call our sales department for your specific needs. Extensions and other depths are also available.
